Metal Tube Rotameter

Metal Tube Rotameter

1 INR/Unit
Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Metal Tube Rotameter Price And Quantity

  • 1 INR/Unit
  • 10 Unit
  • 250.00 - 1000.00 INR/Unit

Metal Tube Rotameter Trade Information

  • 50 Unit Per Day
  • 1 Week

Product Description

GLASS TUBE ROTAMETER (RSA 3006)
Rotameter are designed for the accurate measurement of rate of flow for liquids and gases. The rotameter is mounted on vertically. A complete rotameter installation consists of tapered glass tube and shielded from all the sided with clearfront visibility. Inside the tubes, the float provides indication of flow rate.
FEATURES:-
1. Over all face to face length 500mm for flanged connection.
2. Easily interchangeability of tubes without disconnection from the lines.
3. Scale Length 180-210mm.
4. Body M.S.powder coated or SS on request.
5. Cover M.S.powder coated.
6. Accuracy ± 2% of FSD
7. Detachable scale with flow rate.
8. End connection rotatable through 360°.
9. Connection - Flanged & Screwed end.
10. Cover glass protected with rubber.
11. Gland Bolt : SS 304 Strictly
12. Packing : pure PTFE.
Material of construction available Material of construction available
Metering tube : Borosilicate glass tapered.
Flow range available
 : 25 - 30000 LPH of water & 0.1 - 300 nm³ /hr of air at NTP.

Floats : SS-0316 / 304 / MS. / S.S. / PP. / Pure PTFE.
End Connection : SS-316 / 304 / MS. / S.S. / P.P. / Pure PTFE Lined.
Packing : Pure PTFE + neoprene & silicon on request
Gland : C.S. Epoxy Coated / SS on request
Body : M.S. Powder coated / SS on request
1 : Named of fluid (service).
2 : Density / Specific gravity.
3 : Flowrange.
4 : Scale marking in LPH / LPM /kg/hr/USGPM.
OPERATING PRESSURE : Min - Max - Working.
OPERATING TEMPERATURE : Min -- Max. - Working.
Material of wetted parts :
LINE SIZE : Flanged / Screw. SIDE - SIDE: Top & Bottom.
ORIENTATION : Vertical - top bottom. INLET- side & OUTLET- vertical vice versa.
Note : Prevents of glass tube breaking to always open outlet valve & gradually operates inlet valves sizes available from 15 nb to 100 nb pipe size. Flow Ranges available from 25 LPH to 30000 LPH of water & 0.1 to 300nm³/hr Air at NTP.

Other Products in 'Rotameter' category

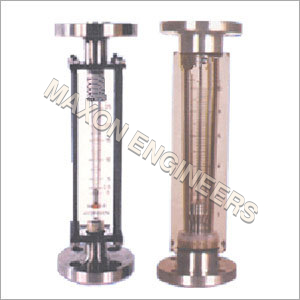

Glass Rotameter
